Compatibility Request for PCB Swap of WD20NMVW-59EDZS7

“Hello,

I need confirmation about compatible SATA PCB for recovery purposes.

Here are the details of my drive:

Model: Western Digital My Passport Ultra (Metal Edition)

Product Number: WDBEZW0020BBA-0A
Serial Number: WXC1AC6AS94Z

Internal HDD Model: WD20NMVW-59EDZS7

PCB Number: 2060-771961-001 REV (USB native)

The drive powers on and is detected via USB, but it is extremely slow and has bad sectors. I need to convert it to SATA for imaging and diagnostics.

Questions:

Does your Western Digital USB-to-SATA PCB Package include a compatible SATA board for 2060-771961-001?

After installing the SATA PCB, will I need to transfer the ROM chip to access the data?

Because this is a My Passport Ultra Metal Edition, does the hardware encryption remain active after PCB conversion?

If encryption prevents access, is the DFL-URE USB3.0 required to extract or decrypt the data?

Thank you.”

The compatible SATA PCB for this 2060-771961-001 REV is 2060-771960 and it is included in the Western Digital USB-to-SATA PCB Package. The patient may suffer the common slow firmware issue or weak head issue. If it is firmware related bad sector slow issue, it’s easy to fix by DFL WD firmware repair tool. If it is weak head or physical bad sector issue, users can only set up head map and image good heads and good sectors first and then weak heads and sectors.

DFL-URE is able to extract the data at non-encrypted status but not recommended for one single case.

/0 Comments/by

Strongly Recommended HDD ROM Read and Writing Tools

,

There’re many new hard drives with newer and higher firmware security level and data recovery engineers couldn’t read and write ROM directly by the existing firmware repair tools.

This article will introduce the easiest method and tools to read and write rom from these new locked drives such as the Western Digital SMR hard drives and new Seagate FW-EB01 hard drives.

This tool is called HDD ROM Programming Clip Adapter and it is working perfectly together with RUS V5000 hdd programmer.

HDD ROM Programming Clip Adapter features:

01: No need to remove PCB;
02: No need to remove ROM chip.

HDD ROM Programming Clip Adapter Package contains the following adapters:

WD 800022 HDD ROM Programming Clip Adapter
WD 800041 HDD ROM Programming Clip Adapter
WD 800065 HDD ROM Programming Clip Adapter
WD 800066 HDD ROM Programming Clip Adapter
WD 800067 HDD ROM Programming Clip Adapter
WD 800069 HDD ROM Programming Clip Adapter
WD 800077 HDD ROM Programming Clip Adapter
WD 810003 HDD ROM Programming Clip Adapter
WD 810011 HDD ROM Programming Clip Adapter
WD 810012 HDD ROM Programming Clip Adapter
WD 810033 HDD ROM Programming Clip Adapter
WD 810035 HDD ROM Programming Clip Adapter
WD 810067 HDD ROM Programming Clip Adapter
WD 810082 HDD ROM Programming Clip Adapter
Seagate 100835923 EB01 HDD ROM Programming Clip Adapter
Seagate 100870309 HDD ROM Programming Clip Adapter

With above clip adapters, users can read the locked hdd rom easily and then generate unlock rom by firmware repair tools and then write unlock rom by the clip adapters. After firmware unlock, users can repair firmware failures by the existing firmware repair tools such as DFL-SRP Portable all-in-one data recovery tool.

/2 Comments/by

How to Extract Firmware Modules from SA Region Automatically

,

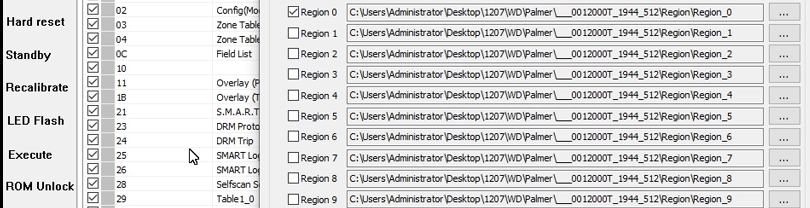

Within DFL-WD hdd firmware repair tool, users get one very helpful firmware repair function: to extract firmware modules from SA region.

To read Western Digital hard drive firmware modules, the firmware repair software usually needs to read module directory(module map) and then read other firmware modules according to module directory. But when the module directory is located on bad sectors or corrupted, the module list is empty and firmware modules couldn’t be read. At this time, users usually find donor rom and loaders of the same microcode to write to patient hdd to access the firmware area or try hot swap method to access firmware modules.

After users have this function to extract firmware modules from SA region, users just need to load loaders to undetected patient hard drives and then read SA region copy 0 or copy 1 and then the software can extract the modules easily and automatically.

For undetected hard drives, only if users get the patient hdd firmware modules, specially key modules, firmware repair will become easier. For example, users can write donor rom and fw to get patient hdds detected and then write patient key firmware modules to access the data area properly.

After firmware repair, users can use DFL-DDP data recovery software to recover lost data.

Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab

/0 Comments/by

WD5000AAKS Head Damage HDD Repair and Data Recovery Steps

,

This is one successful Western Digital hard drive data recovery case study shared by one DFL user in India. The patient drive had head failure, kept busy and had no access to data area at all.

Patient HDD ID:

Model-WD5000AAKS
PCB: 1640 series

To recover lost data from head damaged hard drives, the very first step is to find one donor hdd with donor heads, users usually check the model and pcb number and sometimes, the DCM is to be checked as well.

After finding the donor hdd, users need to open the patient drive in clean room environment and swap the heads.

Next users need to enter the DFL WD hdd firmware repair software and backup the rom and important firmware modules including the 03, loaders, 31, 36, 40, 49, 4A.

Next users can test the firmware modules and find out which modules are damaged and then repair the damaged firmware modules. In most wd traditional hard drives, we need to run the slow fix.

Next we can use DFL-DDP data recovery software to set up disk image project, set up head map, image good heads and then weak heads.

Finally we can extract lost data from the image file or target drive.

Head Replacement Tools, HDD Repair Tools, Data Recovery Equipment required in above case study:

Hard Drive Ramp Toolkit Pro.
DFL-WD hdd firmware repair tool
DFL-DDP Data recovery tool

Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab

/0 Comments/by

Super Version of WD SMR 800067 USB-SATA HDD Data Recovery Adapter

, ,

G3(Generation 3) WD SMR HDD 800067 USB-SATA Data Recovery Adapter Pro. is created to make WD SMR USB HDD data recovery easier and more successful. After using this 800067 G3 adapter, users can easily work on the 800067 USB hdd by SATA interface without the SED headache.

G3 WD SMR HDD 800067 USB-SATA Data Recovery Adapter Pro. contains the following items:

01: 800067 USB to SATA connector;
02: USB Type-C Cable;
03: Software to read/write 800067 USB HDD rom and adjust SATA data signals.

Wow Features of G3 WD SMR HDD 800067 USB-SATA Data Recovery Adapter Pro.

01: Super easy to install this G3 SATA adapter to the 800067 USB PCB;
02: Independent simple software to read rom, write rom directly without using flash programmer;
03: Buffer chip used and users can use the given simple software to adjust the SATA data signals to make firmware operations, disk image and file extraction faster and make data transfer more stable, this makes it possible to bypass the capacitors removal;
04: Power stabilizator is used;
05: ESD protection is adopted.

Steps to use G3 WD SMR HDD 800067 USB-SATA Data Recovery Adapter Pro.

01: Install 800067 G3 SATA adapter;
02: Read original 800067 ROM with G3 adapter software;
03: Generate unlock rom by DFL-WD firmware repair tool;
04: Write unlock rom with G3 adapter software;
05: Disable 411 and backup firmware modules, specially module 190;
06: Test firmware modules and repair corrupted firmware modules;
07: Image patient drive or extract lost data directly.

Users can order this Super Version of WD SMR 800067 USB-SATA HDD Data Recovery Adapter here.

Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab

/0 Comments/by

WD20NMVW-11W68S0 2060-771801 WD HDD Repair and Data Recovery

,

This is one successful WD hdd firmware repair and data recovery case study for one DFL user from Bangladesh and all lost data was recovered by DFL-PCIe data recovery hardware tool.

HDD Model ID: WD20NMVW-11W68S0
PCB number: 2060-771801

Failure symptoms:

External hdd was not detected by pc
Data was not accessed

The user converted the USB PCB to SATA PCB(771823) and then connected to DFL PCIe data recovery hardware for diagnosis.

DFL-WD hdd firmware repair tool was firstly used to diagnose the firmware corruption issue and the common slow firmware issue was detected and this issue was fixed by one click.

Next DFL-DDP data recovery equipment was used to set up one disk image project and auto decryption function was used to decrypt the data. Finally all lost partitions and files were recovered.



Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab

/0 Comments/by
