WD141KRYZ-01C66B0 hdd firmware repair and data recovery steps

, ,

This is one very successful Western Digital HGST helium hdd firmware repair and data recovery case study from one Dolphin user in Turkey. The user has tried other software and solutions but failed to get the lost data back.

Patient HDD ID:

WD141KRYZ-01C66B0
14TB

Patient HDD Failure symptoms:

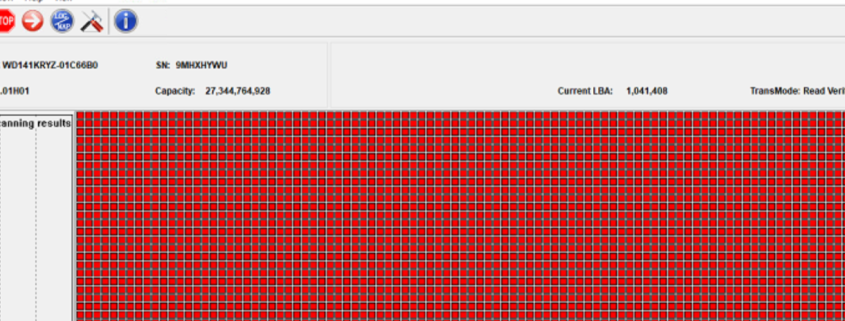

When trying to access data, full of bad sectors, no sectors are accessible
Status registers report UNC error and some other software report ABR error

WD141KRYZ-01C66B0 hdd firmware repair and data recovery steps

01: Connected patient hdd to DFL-SRP or DFL PCIe data recovery hardware;
02: Open DFL DDP data recovery software;
03: Power on patient HDD and wait until ready;
04: Click HGST translator recovery within the common repair section and wait until the log window reports ‘operation completed’.
05: Power off and on and users can access the data area successfully and all lost partitions, folders and files are available for immediate data recovery.

/0 Comments/by

WD Hitachi HGST Helium Drive Common Repair-One Click Fix in DDP

, ,

One new common firmware repair solution-quick fix of WD Hitachi HGST helium drive UNC error is now available within DFL-DDP data recovery equipment.

When users are running the logical scan/bad sector scan, no sectors are accessible with UNC error reported and now this error can be easily fixed by one click in the DFL-DDP data recovery software.

Video demo on How to Recover WD Hitachi HGST Helium Drives by One Click

/0 Comments/by

WD160EDGZ WD161KFGX WD161KRYZ WUH721816ALE6L4 WUH721816ALE604 WUH721816AL5200 UNC Data Error HDD Data Recovery

, ,

Patient HDD ID:
WD160EDGZ WD161KFGX WD161KRYZ
WUH721816ALE6L4 WUH721816ALE604
WUH721816AL5200

Patient HDD Failure Symptoms:
UNC error reported when trying to access the data area (running logical scan)

Data Recovery Solution for WD160EDGZ WD161KFGX WD161KRYZ WUH721816ALE6L4 WUH721816ALE604 WUH721816AL5200 UNC Data Error HDD Data Recovery

There’re many WD Hitachi helium hard drives of 8T,10T,12T,14T,16T,etc. Users can connect these patient drives to desktop computer SATA ports and test the hdds by one software to see if they report UNC error. Users can also connect these helium patient drives to the existing hdd firmware repair hardware and see if they report UNC error.

Related article: Recover Lost Data from WD Hitachi Helium Hard Drives with UNC Common Firmware Failure

/0 Comments/by

WD140EDFZ WD140EDGZ WD141KRYZ WUH721414ALE6L4 WUH721414AL4204 WUH721414AL5204 UNC Data Error HDD Data Recovery

, ,

Patient HDD ID:
WD140EDFZ WD140EDGZ WD141KRYZ
WUH721414ALE6L4 WUH721414AL4204 WUH721414AL5204

Patient HDD Failure Symptoms:
UNC error reported when trying to access the data area (running logical scan)

Data Recovery Solution for WD140EDFZ WD140EDGZ WD141KRYZ WUH721414ALE6L4 WUH721414AL4204 WUH721414AL5204 UNC Data Error HDD Data Recovery

There’re many WD Hitachi helium hard drives of 8T,10T,12T,14T,16T,etc. Users can connect these patient drives to desktop computer SATA ports and test the hdds by one software to see if they report UNC error. Users can also connect these helium patient drives to the existing hdd firmware repair hardware and see if they report UNC error.

Related article: Recover Lost Data from WD Hitachi Helium Hard Drives with UNC Common Firmware Failure

/0 Comments/by

HUH721212AL5204 HUH721212ALE600 WD120EDBZ WD120EDAZ WD120EFAX WD120EFBX UNC Data Error HDD Data Recovery

, ,

Patient HDD ID:
Model number-HUH721212AL5204 HUH721212ALE600
WD120EDBZ WD120EDAZ WD120EFBX WD120EFAX
Western Digital 12TB Ultrastar DC HC520 HDD

Patient HDD Failure Symptoms:
UNC error reported when trying to access the data area (running logical scan)

Data Recovery Solution for HUH721212AL5204 HUH721212ALE600 WD120EDBZ WD120EDAZ WD120EFAX WD120EFBX UNC Data Error HDD Data Recovery

There’re many WD Hitachi helium hard drives of 8T,10T,12T,16T,etc. Users can connect these patient drives to desktop computer SATA ports and test the hdds by one software to see if they report UNC error. Users can also connect these helium patient drives to the existing hdd firmware repair hardware and see if they report UNC error.

Related article: Recover Lost Data from WD Hitachi Helium Hard Drives with UNC Common Firmware Failure

/0 Comments/by

HUH721010ALE601 HUH7210xxALN60y WD100EFAX WD101PURZ HUH721010AL4204 UNC Data Error HDD Data Recovery

, ,

Patient HDD ID:
Model number-HUH721010ALE601 HUH7210xxALN60y
WD100EFAX WD101PURZ
HUH721010AL4204

Patient HDD Failure Symptoms:
UNC error reported when trying to access the data area (running logical scan)

Data Recovery Solution for HUH721010ALE601 HUH7210xxALN60y WD100EFAX WD101PURZ HUH721010AL4204 UNC Data Error HDD Data Recovery

There’re many WD Hitachi helium hard drives of 8T,10T,12T,16T,etc. Users can connect these patient drives to desktop computer SATA ports and test the hdds by one software to see if they report UNC error. Users can also connect these helium patient drives to the existing hdd firmware repair hardware and see if they report UNC error.

Related article: Recover Lost Data from WD Hitachi Helium Hard Drives with UNC Common Firmware Failure

/0 Comments/by

WD8004VRYZ WD8004FRYZ WD8002FRYZ WD80EFZX UNC Data Error HDD Data Recovery

,

Patient HDD ID:
Model number-WD8004VRYZ/WD8004FRYZ/WD8002FRYZ/WD80EFZX

Patient HDD Failure Symptoms:
UNC error reported when trying to access the data area (running logical scan)

Data Recovery Solution for WD8004VRYZ WD8004FRYZ WD8002FRYZ WD80EFZX UNC Data Error HDD Data Recovery

There’re many WD Hitachi helium hard drives of 8T,10T,12T,16T,etc. Users can connect these patient drives to desktop computer SATA ports and test the hdds by one software to see if they report UNC error. Users can also connect these helium patient drives to the existing hdd firmware repair hardware and see if they report UNC error.

Related article: Recover Lost Data from WD Hitachi Helium Hard Drives with UNC Common Firmware Failure

/0 Comments/by

How to Read and Write HDD Mini ROM Chips

, ,

There are many new hard drives using new mini bios chips on the PCB containing the rom modules and hex data. Some PCBs have one mini bios chip and some PCBs have two mini bios chips: rom chip 0 and rom chip 1.

Mini rom chip size: 4mm x 3mm and 3mm x 2mm
HDD Mini ROM Chip Reader Pro. 4-3
HDD Mini ROM Chip Reader Pro. 3-2

If the pcbs have two mini bios chips, users need to read the rom one by one and name them as rom 0.bin and rom 1.bin and when users are going to write rom, users need to write rom0.bin to rom 0 chip and write rom 1.bin to rom chip 1.

These new drives are mainly Seagate new drives, Seagate helium drives, WD hitachi helium drives and also some other new drives too.

To read and write the rom contents, users need to use the latest Mini ROM Chip Reader here.

Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab

/0 Comments/by

Helium Hard Drive Head Replacement Tools 8T 10T 12T 14T 16T

,

The following are the latest helium hard drive head replacement tools with very good price.

STH82 for Seagate 12TB helium drives, ST12000NM0007
ST5E for Seagate 8TB helium drives ST8000NM000A
STH81 for Seagate 10TB helium drives, ST10000NM0478, 8 platters, 16 heads
STH9 for Seagate 14TB 16TB helium drives, 9 platters, 18 heads

W3-9: WD helium hdd of 10T-16T, 9 platters;

Users can get more details on the latest helium hdd head replacement tools here.

Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab

/0 Comments/by

WD82PURX-78GVLY0 DaHua DVR HDD Data Recovery Steps

, ,

This is one 8TB WD82PURX-78GVLY0 DaHua DVR hard drive and the user couldn’t access this DVR drive in their DVR device and all videos were lost.

To recover all the lost valuable videos from this Western Digital helium DVR hard drives, the user selected Dolphin DVR data recovery software to recover the lost videos.

The user mount the DVR drive by DFL-SRP data recovery hardware to PC and the Dolphin DVR data recovery software detected the DVR drive and listed it, the user extended all the lost 4 partitions and recovered all the lost videos. Please note the user needs to select the partition one by one to recover.

Video Guide: WD82PURX 78GVLY0 DaHua DVR HDD Data Recovery Steps

Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab
