Description

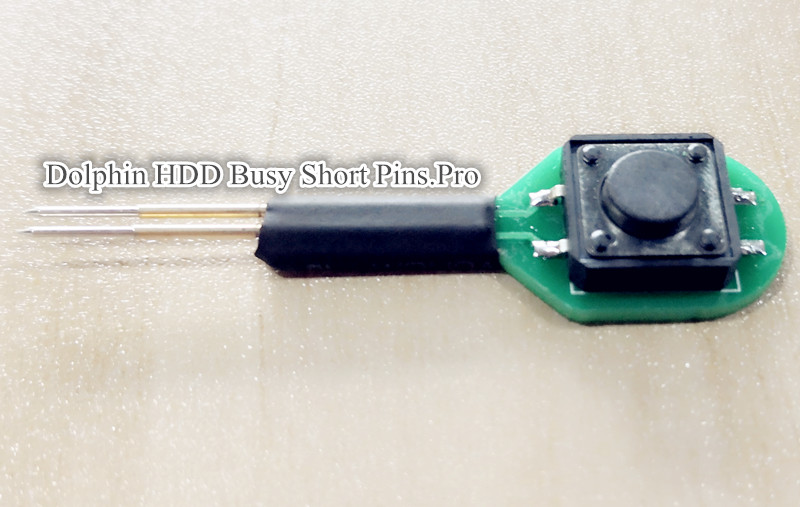

HDD Busy Shorting Pins Pro. is one new hard drive repair tool, this is hardware only tool, no software included.
HDD Busy Shorting Pins Pro. is specially designed for easy shorting and grasping the right time to short successfully. Pressing the button means shorting on, releasing the button means shorting off. Users just need to find the correct shorting points and put the two pins on the shorting points and then press and release the button to complete the shorting process.
HDD Busy Shorting Pins Pro. is mainly used for Western Digital and Seagate firmware corrupted data recovery cases.

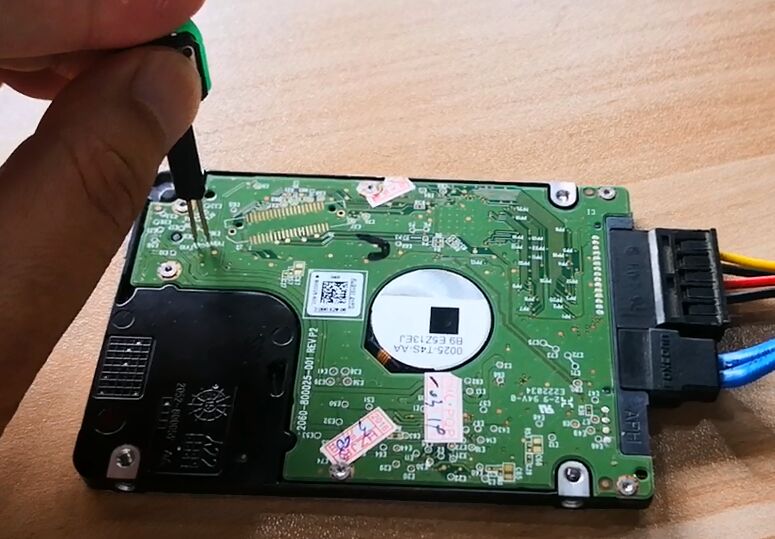

HDD Busy Shorting Pins Pro. is used to short connect the hard drive read channels. Within many data recovery cases, the drives keep busy due to firmware failure and if users find the correct shorting points on the PCB and short connecting them, the drive will bypass the damaged firmware read and get ready.
For Western Digital drives, users usually short connect TV 9 and TV 10(Most common one) or P9 P10 or E47 and ground to get drives ready.
For Seagate hard drives, different PCB has different shorting points, DFL users get detailed manuals on how to find the shorting points easily. Users usually short connect to enter the F3 T> to execute commands to repair the firmware failures.
Please note: This busy shorting pins don’t fix all busy cases.
HDD Busy Shorting Pins Pro. Video Introduction:
Any question is welcome to [email protected] or add Dolphin Skype ID: dolphin.data.lab
