Description

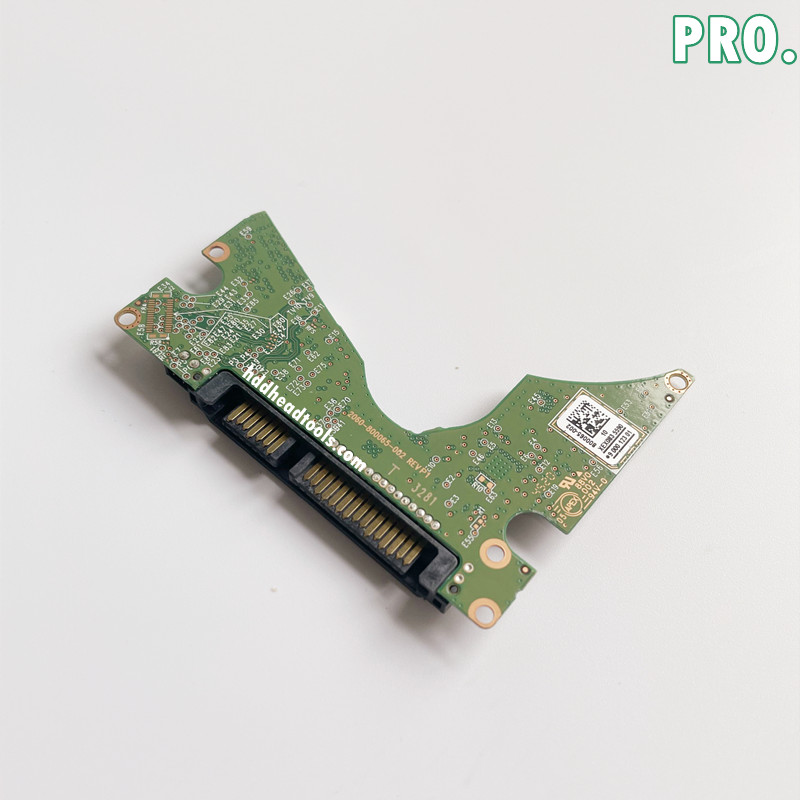

WD 2060-800065 HDD Firmware Unlock PCB is available now! After users buy this unlock PCB, users will get one helpful technique support document on how to recover lost data from these WD MCU locked hard drives.

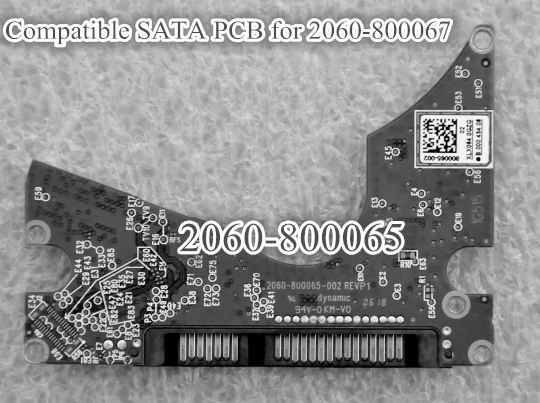

This is one WD unlocked HDD firmware SATA PCB of 2060-800065 compatible for WD USB PCB of 2060-800067 and WD Type C PCB 2060-810003.
How to recover lost data from WD WD20SDZW, WD20SPZX and
WD WD20SMZW hard drives? Many data recovery engineers have this kind of cases but none of them are able to get the cases fixed due to the main chip lock.
WD WD20SPZX SATA PCB: 2060-800065
WD WD20SDZW USB3.0 PCB: 2060-800067
WD WD20SMZW USB3.0 PCB: 2060-800067
WD20SMZM: Type C PCB 2060-810003
Compatible SATA PCB of 2060-800067 USB3.0 PCB and Type C PCB 2060-810003: 2060-800065.
These drives have main chip lock and users cannot read and write ROM, cannot read and write SA.
So users must unlock the main chip and then users can work with the firmware.
Users can buy the 2060-800065 data recovery PCB now.
If you don’t want to solder ROM chip and read/write the ROM, users can read more on this innovative HDD ROM chip pin reader: HDD ROM Chip Pin Reader Set
Please note: This firmware unlock PCB doesn’t help on the WD SMR HDD SED V2 data encryption issue, it helps only to access firmware area. To fix the SED V2 data encryption issue, users need to use HDD USB-SATA Wiring PCB Pro. or Data Unlock SATA Connectors.
