HDD ROM Chip Pin Reader Set

Description

HDD ROM Chip Pin Reader Set is one innovative and customized hard drive ROM chip reader, it helps users to read ROM from ROM chip directly while the ROM is still on the PCB without soldering the ROM chip off.

Watch the video demo of HDD ROM Chip Pin Reader Set here.

For traditional flash programmer program, users need to solder the rom chip off the PCB, put the ROM chip to the chip holder and then users can read and write the ROM to chip.

With this innovative pin reader, users can simply connect the reading pins to the ROM chip pins and then users can read and write the ROM at high speed. Users don’t need to solder the ROM chip at all. Users can save a lot of time on soldering and at the same time, users can protect the chip maximally.

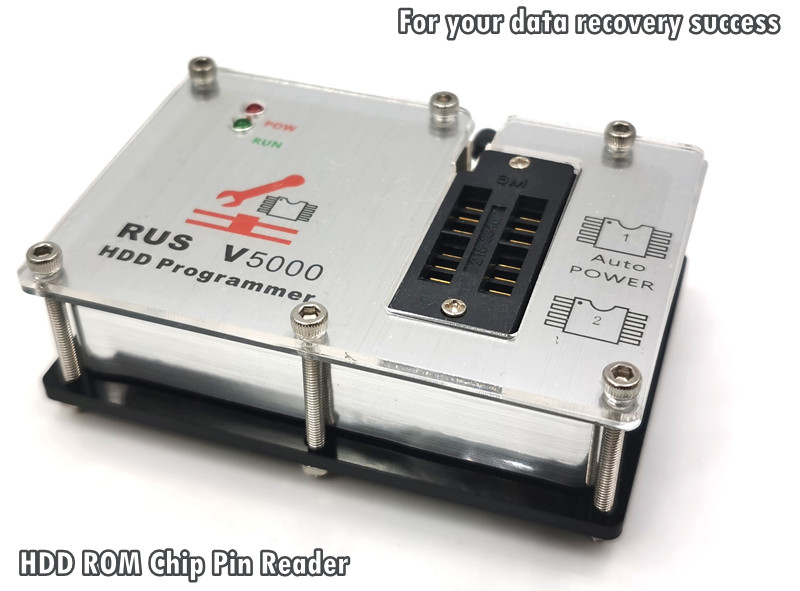

HDD ROM Chip Pin Reader Set is one mini and USB flash programmer, users just simply connect the programmer console to pc by USB without connecting external power supply cable and users can use some shortcut keys to read and write rom simply.

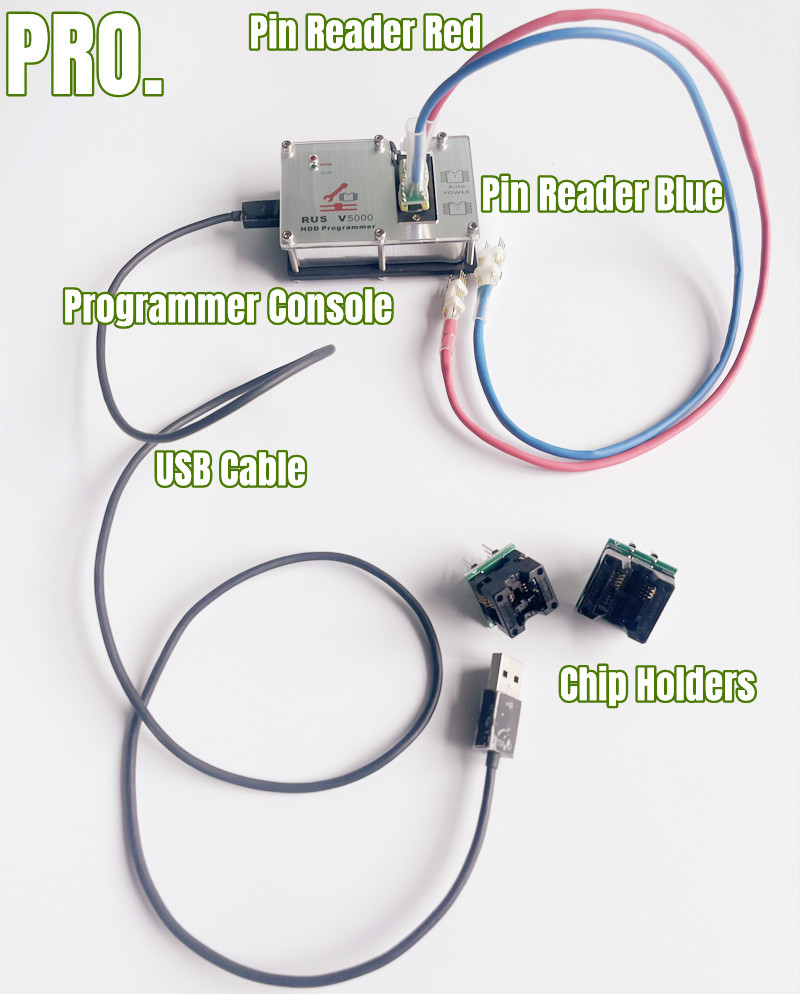

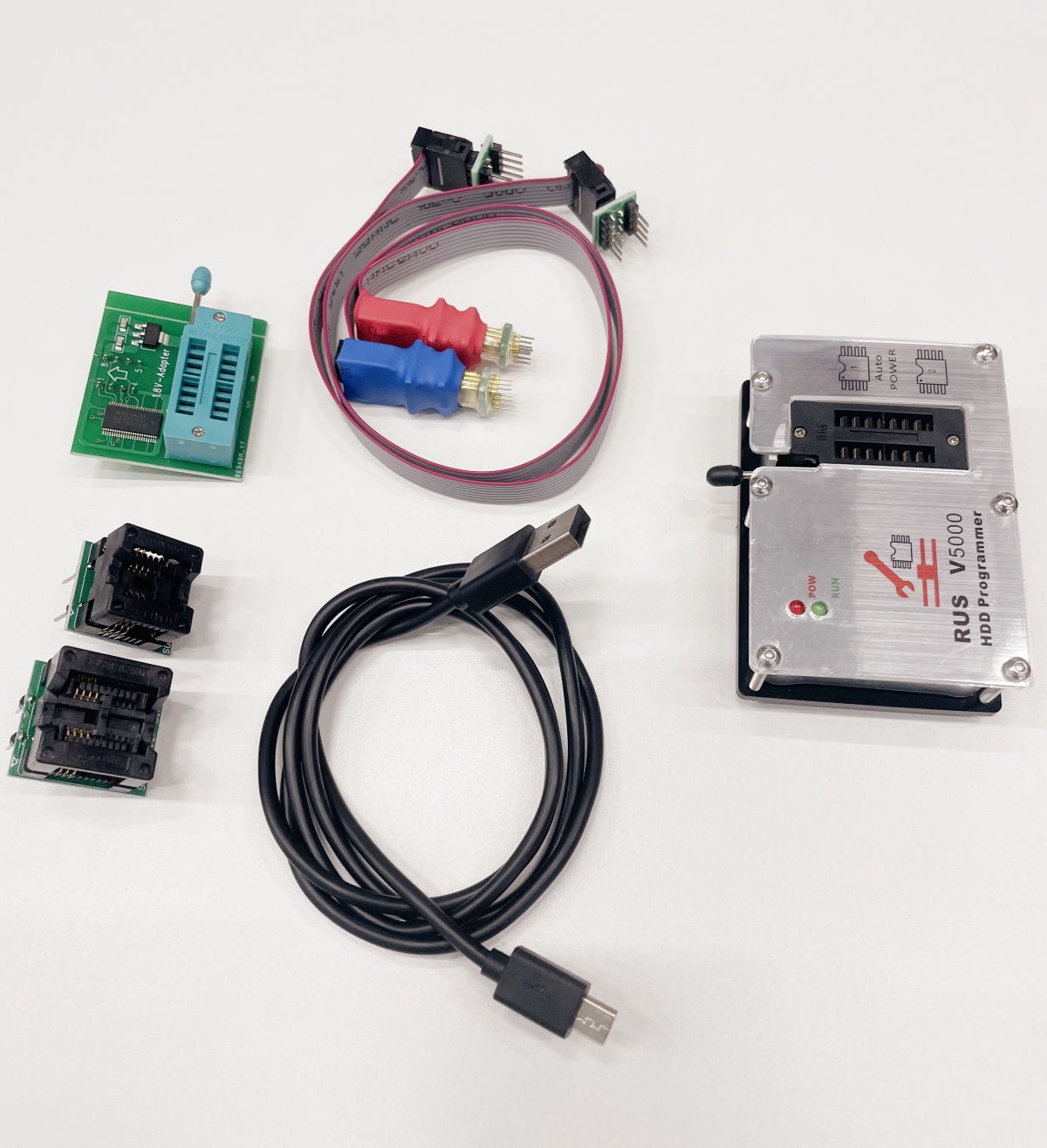

What are included in this HDD ROM Chip Pin Reader Set when users receive the package?

01: USB cable;
02: Programmer hardware console;
03: Pin reader/Reading pins (Innovative reading solution), two pieces for two sizes of ROM chips;
04: Chip holders, two pieces, one for small sized ROM chip and the other for bigger sized ROM chip. This one is usually not used, few chips may need to be read by chip holder.

Nov.21, 2022: Newly added component: 1.8v ROM chip adapter

Example ROM read log on 8000xx ROM read and write:

18:11:33 25 SPI FLASH : KH(MXIC) : MX25U8033E-L : 8Mbits/1Mbytes
18:11:38 Read successfully!
18:11:38 Read finished!0:5

18:12:17 25 SPI FLASH : KH(MXIC) : MX25U8033E-L : 8Mbits/1Mbytes
18:12:18 program begin…
18:12:22 program successfully! 1048576 byte(s),0:4
